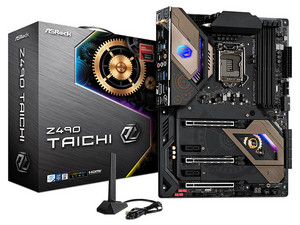

Motherboard Asrock Z490 Taichi, Chipset Intel z490, Supports: Intel Core 10th and 11th generation (LGA1200) Memory: DDR4 4666+(OC) / 3600 / 2133 MHz, 128GB Max, Integrated: HD Audio, Network, USB 3.2 and SATA 3.0, ATX, Pts: 3xPCIE3.0x16, 2xPCIE3.0x1.
Specifications
| General specifications |
| Brand |
asrock |
| Model |
Z490 Taichi |
| Colour |
Black |
| – Processor |
| For Processors |
Intel |
| cpu-socket |
Socket 1200 |
| Compatible Processors |
Supports 10th Generation Intel Core Processors and 11th Generation Intel Core Processors (LGA1200) |
| -Chipset |
| Type of use |
High performance |
| Model |
Intel Z490 |
| – Memory |
| Supported Memory Type |
DDR4 |
| Memory slots |
4x DIMMs |
| Compatible Memory |
DDR4 4666+ (OC) * / 4600/4500/4400/4333/4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3800 (OC) / 3733 (OC) / 3600 (OC) / 3200 (OC) / 2933/2800/2666/2400/2133 non-ECC, unbuffered memory |
| Maximum Memory Supported |
up to 128GB |
| Memory Architecture |
dual channel |
| – Expansion Slots |
| PCI Express 3.0 x16 |
3 |
| PCI Express 3.0 x1 |
two |
| – Storage devices |
| SATA 6Gb/s |
6 |
| M.2 |
1 |
| – Integrated Audio Chipset |
| Integrated Audio |
Realtek ALC1220 |
| Audio Channels |
7.1 channels |
| – Integrated Network |
| Network chipset |
Dragon RTL8125BG |
| Maximum Network Speed |
10/100/1000/2500Mb/s |
| – Rear I/O Ports |
| PS/2 |
1 |
| USB3.0 |
two |
| USB 3.1 Type-C |
1 |
| USB 3.1 Type-A |
5 |
| S/PDIF Out |
1 |
| HDMI |
1 |
| display port |
1 |
| Network Connectors (RJ45) |
two |
| – Internal I/O Connector |
| USB |
2 x USB 3.2
2 x USB 2.0
1 x USB 3.2 Type-C Front Panel |
| 24-pin ATX |
1 |
| ATX 12V 8-pin |
two |
| Audio |
1 |
| Thunderbolt |
1 |
| cpu fan |
1 |
| Chassis fan |
6 |
| TPM |
1 |
| Clear CMOS button |
1 |
| – Specifications |
| form factor |
ATX |
