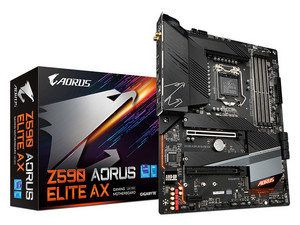

Gigabyte Z590 Aorus Elite AX Motherboard, Intel Z590 Chipset, Supports: Intel 11th and 10th Generation, Memory: DDR4 5400(OC)/4700 (OC)/2133 MHz, 128GB Max, Integrated: HD Audio, Network, USB 3.0 and SATA 3.0, ATX, Ports: 2xPCIEx16, 1xPCIEx1.
Specifications
| General specifications |
| Brand |
Gigabyte |
| Model |
Z590 AORUS ELITE AX |
| Color |
Negro |
| – Processor |
| For Processors |
Intel |
| CPU Socket |
Socket 1200 |
| Compatible Processors |
11th Generation Intel Core i9 Processors / Intel Core i7 / Intel Core i5 Processors
10th Generation Intel ® Core ™ i9 Processors / Intel ® Core ™ i7 Processors / Intel ® Core ™ i5 Processors / Intel ® Core ™ i3 Processors / Intel ® Pentium ® processors / Intel ® Celeron ® processors * * Limited to processors with 4 MB Intel ® Smart Cache, Intel ® Celeron ® G5xx5 family. |
| – Chipset |
| Type of use |
High performance |
| Model |
Intel Z590 |
| – Memory |
| Supported Memory Type |
DDR4 |
| Memory slots |
4 x DIMM |
| Compatible Memory |
DDR4 5400 (OC) / DDR4 5333 (OC) / DDR4 5133 (OC) / DDR4 5000 (OC) / 4933 (OC) / 4800 (OC) / 4700 (OC) / 4600 (OC) / 4500 (OC) / 4400 (OC) / 4300 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3800 (OC) / 3733 (OC) / 3666 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3333 (OC) / 3300 (OC) / 3200/3000/2933/2800/2666/2400/2133 MHz módulos de memoria |
| Maximum Memory Supported |
up to 128GB |
| Memory Architecture |
Dual Chanel |
| – Expansion Slots |
| PCI Express x16 |
1 |
| PCI Express x4 |
1 |
| PCI Express x1 |
1 |
| – Storage devices |
| SATA 6Gb / s |
6 |
| M.2 |
3 |
| – Integrated Audio Chipset |
| Integrated Audio |
ALC1220-VB |
| Audio Channels |
7.1 channels |
| – Integrated Network |
| Chipset de Red |
Realtek LAN Chip |
| Maximum Network Speed |
2,5 Gb |
| – Rear I/O Ports |
| USB 1.1/2.0 |
4 |
| USB 3.0 |
5 |
| USB 3.1 Type-C |
1 |
| S/PDIF Out |
1 |
| Display port |
1 |
| Network Connectors (RJ45) |
1 |
| Audio Ports |
5 |
| – Internal I / O connector |
| USB |
1 x USB 3.2 Tipo C
1 x USB 3.2 Gen1
2 x USB 2.0/1.0 |
| ATX de 24-pin |
1 |
| ATX 12V 8-pin |
1 |
| ATX 12V 4-pin |
1 |
| M.2 |
3 |
| CPU Fan |
1 |
| Chassis Fan |
3 |
| Clear CMOS button |
1 |
| – Specifications |
| form factor |
ATX |
