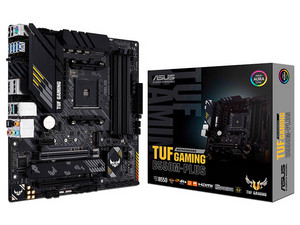

Asus TUF GAMING B550M-PLUS Motherboard

Asus TUF GAMING B550M-PLUS Motherboard, AMD B550 Chipset, Supports: AMD Ryzen 3rd Gen Processor, Socket AM4, Memory: DDR4 4600(OC)/ 3466/ 2133 MHz, 128GB Max, Integrated: HD Audio, Network, USB 3.2 , SATA 3.0, Micro-ATX, Pts: 2xPCIEx16, 1xPCIEx1

Asus TUF GAMING B550M-PLUS Motherboard, AMD B550 Chipset, Supports: AMD Ryzen 3rd Gen Processor, Socket AM4, Memory: DDR4 4600(OC)/ 3466/ 2133 MHz, 128GB Max, Integrated: HD Audio, Network, USB 3.2 , SATA 3.0, Micro-ATX, Pts: 2xPCIEx16, 1xPCIEx1

Specifications

General specifications
Brand ASUS
Model TUF GAMING B550M-PLUS
Serie TUF GAMING
– Processor
For Processors amd
cpu-socket socket AM4
Compatible Processors 3rd Gen AMD Ryzen Processors
-Chipset
Type of use High performance
Model AMD B550
– Memory
Supported Memory Type DDR4
Memory slots 4x DIMMs
Compatible Memory 4600 (OC) / 4400 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3333 (OC) / 3200/3000/2800/2666/2400/2133MHz
Maximum Memory Supported 128GB
– Expansion Slots
PCI-Express x16 two
PCI-Express x1 1
– Storage devices
SATA 6Gb/s 4
M.2 two
– Integrated Audio Chipset
Integrated Audio Realtek ALC1220A codec
– Integrated Network
Network chipset Realtek RTL8125B
Maximum Network Speed 2.5Gbps
– Rear I/O Ports
PS/2 1
USB1.1/2.0 two
USB3.0 4
USB 3.1 Type-A 1
USB Type-C 1
S/PDIF Out 1
HDMI 1
display port 1
Network Connectors (RJ45) 1
Audio Ports 5
– Internal I/O Connector
USB 1x USB 3.2 Gen 1
2x USB 2.0
24-pin ATX 1
ATX 12V 8-pin 1
COM 1
M.2 two
cpu fan two
Chassis fan two
Clear CMOS button 1
– Specifications
form factor Micro-ATX
System BIOS 256Mb Flash ROM, UEFI AMI BIOS
Physical Characteristics
Dimensions 24.4cm x 24.4cm
